| Product 1: |
|
Product 2: |
 |
| Accessory: |
|

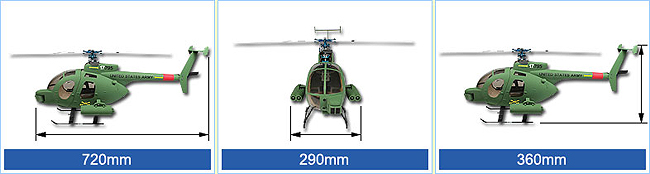

Length,Width,Height Lateral view: |
 |
| Illustration1:Movable radar. |
|
| Illustration2:High detailed scare missile launching. |
|
| Instructions: | Specification: |
?Suitable for ALIGN T-REX450 series.
?Movable radar.
?High detailed scare missile launching.
?Non screw canopy cover design which convenient for battery's maintenance.
?Use For T-REX 450 SE/V2/SPORT.
| ?Body length:720mm
?Body width:290mm
?Body high:360mm
?Weight:370g
?Color carton:68.6x22.3x15.7cm
?Outer carton:70x48x46cm ,6sets/ctn |
| Accessory: |
?500D Fuselage x 1
?500D Canopy x 1
?500D Top window x 2
?500D Front window x 2
?500D Rear window x 2
?Front height retainer(20.3mm) x 1
?Rear height retainer(23.4mm) x 1
?Front landing skid x 2
?Rear landing skid x 2
?Horizontal Stabilizer x 1
?Tip fin x 2
?Vertical stabilizer x 1
?Missile mount x 2
?Missile launching pad x 2
?Pipe mount x 1
?Skid pipe x 2
?Skid pipe end cap x 2
?Ball link(Long) x 2
?500E Rudder control rod x 1(F1.3X300mm)
?Linkage ball B(M2x3) x 1(F4.75X9.77mm)
?Aluminum link x 2
?Washer side self tapping screw x 4(T2x8mm)
?Washer side self tapping screw x 2(T2x10mm)
?Self-tapping screw x 4(T2x14mm)
?Screw x 2(M2x14mm)
?Socket button head self tapping screw x 2(T2x16mm)
?Washer x 6(F2.2XF5X0.5mm)
|
