| Product: |
|
Accessory1: |
 |
| Accessory2: |
|
| Illustration:(Suitable for T-REX600 Nitro / 600E.) |
|
|

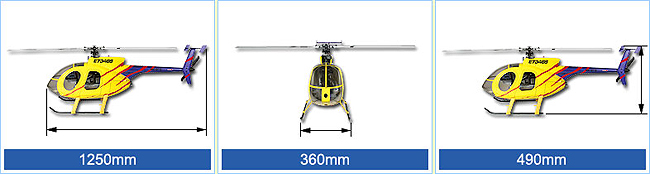

Length,Width,Height Lateral view: |
 |
| Package: |
|
| Instructions: | Specification: |
| •Suitable for ALIGN T-REX600 Nitro / 600E. | •Body length:1250mm
•Body width:360mm
•Body high:490mm
•Weight:1300g
•Size:101x41x30cm ,1 set/ctn
|

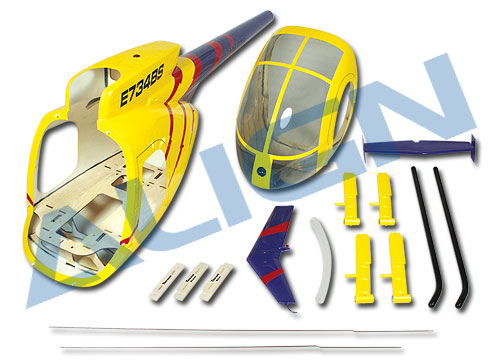

| Accessory: |
•500E Canopy x 1
•500E Fuselage x 1
•Vertical stabilizer x 1
•Horizontal Stabilizer x 1
•Landing skid x 4
•Skid pipe x 2
•Fuselage frame 600E(Front) x 1
•Fuselage frame 600E(Rear) x 1
•Fuselage frame 600N(Rear) x 1
•Pipe mount x 1
•Light Cover x 2
•Exhaust guide(F11.5xF17x230mm) x1
•Servo pole x 4
•Washer(F3.2xF10x0.8mm) x 4
•Washer(F3.3xF8x0.5mm) x 4
•Socket button head screw(M3x6mm) x 8
•Socket collar screw(M3x16mm) x 2
•Socket collar screw(M3x35mm) x 2
•Socket screw(M3x12mm) x 4
•Self-tapping screw(T3x10mm) x 6
•Set screw(M3x3mm) x 4
•Ball link x 2
•Tail control guide x 1
•600N Rudder control rod x 1
•600E Rudder control rod x 1
•Nylon strap(2.5x160mm) x 2
|
