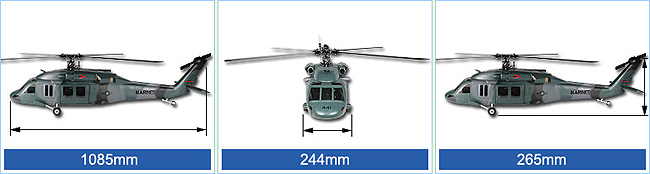

Length,Width,Height Lateral view:
|Illustration 1:(Optional)4 blades rotor system|
|Illustration 2:Scale landing gear assembly|
|Illustration 3:Scale landing gear assembly|
|Illustration 4:Functional cabin doors|
|Illustration 5:Elevated tail rotor assembly|
|Illustration 6:Scale turbine engines|

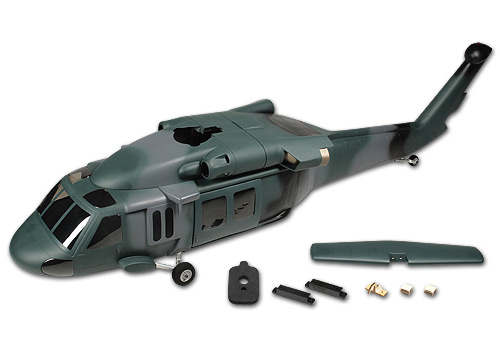

?The UH-60 Blackhawk helicopter has been popularized by Hollywood productions, leaving fans with impression of its role as wartime payload carrier. This highly detailed Blackhawk scale fuselage with camouflage paint scheme is a great opportunity for the collectors and enthusiasts alike.
?The complete kit includes special carbon side frames, scale 4 blades rotor system(optional), scale elevated tail rotor system, and even functional cabin doors. The detailed scale features of this fuselage surely will make any imaginary movie scenario come true. Time to send your Blackhawk out to the battle field for your own search and rescue mission!
?3G flybarless system is not included with this kit, and need to be purchased separately.
?UH-60 Scale Fuselage suitable for T-Rex 500 models.
?Special carbon side frames
?Elevated tail rotor assembly
?Scale landing gear assembly
?Functional cabin doors
|?Fiberglass main frames (R/L) x 2 |
?Tail boom (f15xf16x152mm) x 1
?Torque tube (154mm) x 1
?Linkage rod (B) (f2x180mm) x 1
?Torque tube drive gear assembly x 1
?Angled tail transmission assembly x 1
?Tail rotor control arm x 1
?Linkage ball A (T2.6x3.5) x 2
?Collar screw x 1
?Ball link x 4
?One-way Bearing Grease x 1
?Long Torque Tube Drive Gear x 2
